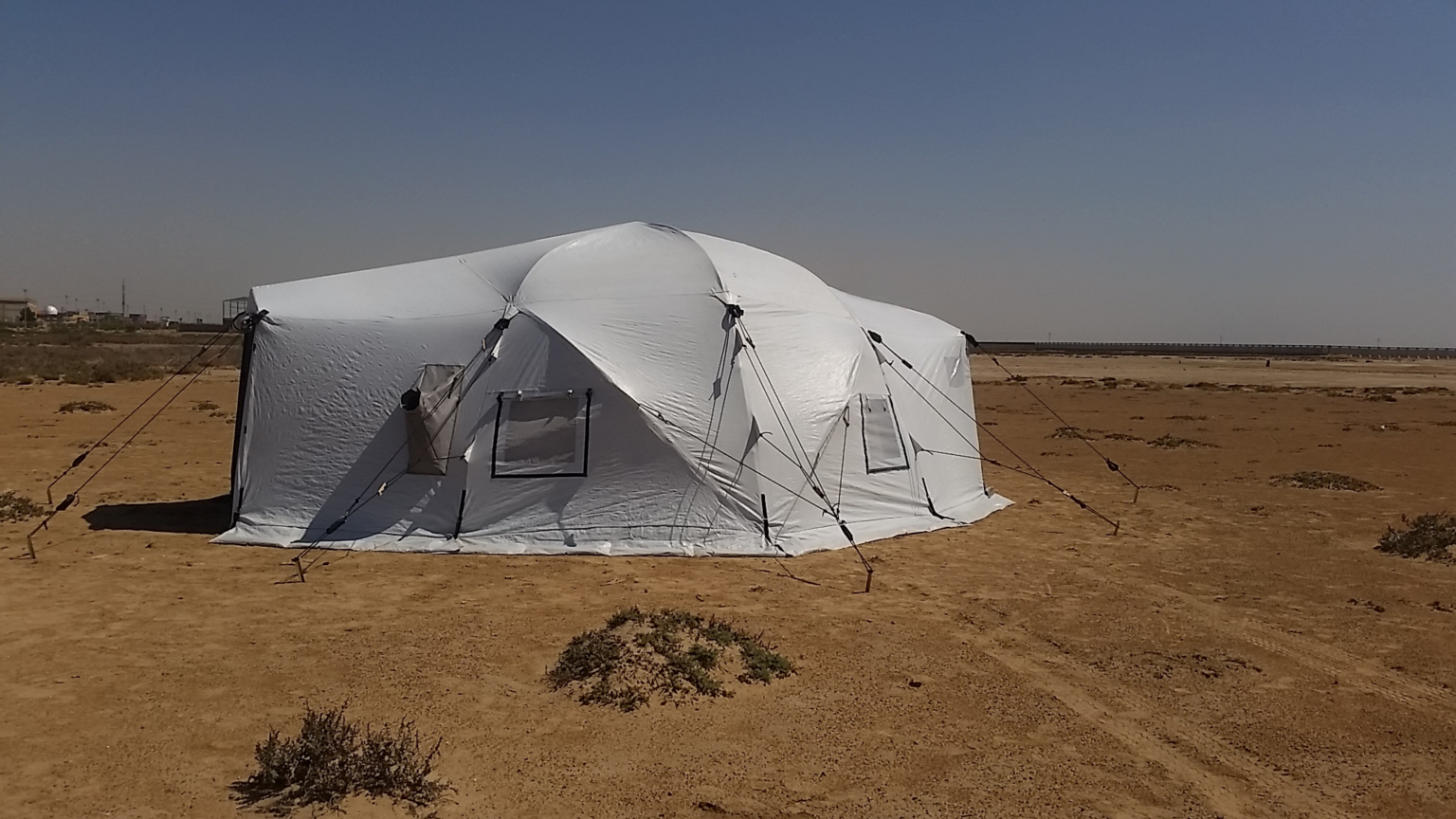

WINTERIZATION MODULE for BLUE GEODESIC TENT
✓ Winterization Module designed for the Alpinter BLUE Geodesic Tent (ICRC/IFRC/ IOM specifications)
✓ Module providing an extra layer of defense against extreme cold, strong winds, and snow, ensuring a warmer and more comfortable interior environment
✓ Fire Retardant, waterproof and UV resistant
✓ Creates an additional 8,4 sqm for storage in its 2 vestibules
DOWNLOADS
Specifications
| LENGTH x WIDTH OUTER TENT WITH VESTIBULE |
755 x 570 cm |
| TOTAL LIVING AREA |
26,5 m² |
| FOOTPRINT OUTER TENT WITH VESTIBULE |
APPROX. 1035 x 900 cm |
| Height |
Central: 250 cm |
| ADDITIONAL GROUND SURFACE VESTIBULES |
2 x 4,2 m2 |
|
|
|
| MATERIAL OUTER |
Woven PE 190 gsm - ICRC/IFRC standard - Fire Retardant (EN13823-A1) |
| LINER COLOR |
White |
| FRAME |
Galvanized steel |
Available upon request
1 x OUTER LINER – WINTERIZATION MODULE
10 x 40 cm T PEGS
1 x HAMMER
Steel poles:
1 CENTER TOP PART
2 x RIDGE PART
2 x DOOR ARCH
4 x DOOR ARCH POLES 1 x CENTER POLE
2 x REMOVABLE DOOR POLES
| Packing unit (P.U.) |
Each kit packed inside 1x PE bundle |
| Content P.U. P.U. |
Shade cover, outer tent, inner separation, accessories, hammer |
| QTY P.U. |
1 piece |
| P.U. MEASUREMENTS |
DIMENSIONS: 113 x 44 x 36 cm |
| QTY PALLET |
6 pcs |
| PALLET MEASURMENTS |
DIMENSIONS: 114 x 98 x 113 cm |
| LOADING |
PACKED QTY PER 20 FT DC 160 pcs unpalletized I 120 pcs palletized |
| SHELF LIFE |
Min. 5 years |
| LIFE SPAN |
Min. 1 year |
| TREATMENT |
Fungi/mold resistant treated |
| SNOW LOAD |
Minimum 300 N/m2 |
| RESISTANCE SETUP |
Easy setup |
